Additional Details and Features:

​​

ELECTRONIC CONTROL

  • Control panel: Screen interface – Weinview, Taiwan brand
  • PLC: Panasonic – Japan brand
  • Servo Motor And Servo Drive: Panasonic– Japanese brand
  • Photo sensor: Sick – Germany / Banner - USA
  • Alarm device: Auto stop when film run out or door open or product caught, etc.


MECHANIC PART

  • Film pulling: Panasonic, Servo motor.
  • Film pulling belt: Double belt
  • Vertical sealing:≤250 mm
  • End sealing: ≤ 200 mm
  • Cutting device: Zigzag cutting knife controlled by air
  • Hole punch: Option
  • Gusseted device: Option


PRINTER

  • Operating speed: Synchronal with machine
  • Printer method: Hot-die stamping with air
  • Printer type: Hot Printer
  • Printing area: 3 lines, 35(w)x10(L)mm
  • Characters of per line: Max. 12 characters
  • Printing position: Changeable


SPARES KIT INCLUDED WITH MACHINE

  • Horizontal Seal Heaters (4)
  • Vertical Seal Heaters (2)
  • Printing Tape (2)
  • Printing Symbol (2 Box)
  • Film Pulling Belt (2)
  • T – Type Knife (1)
  • Copper Brush (1)
  • Inner Hexagon Spanner (1)
  • Movement Spanner (1)

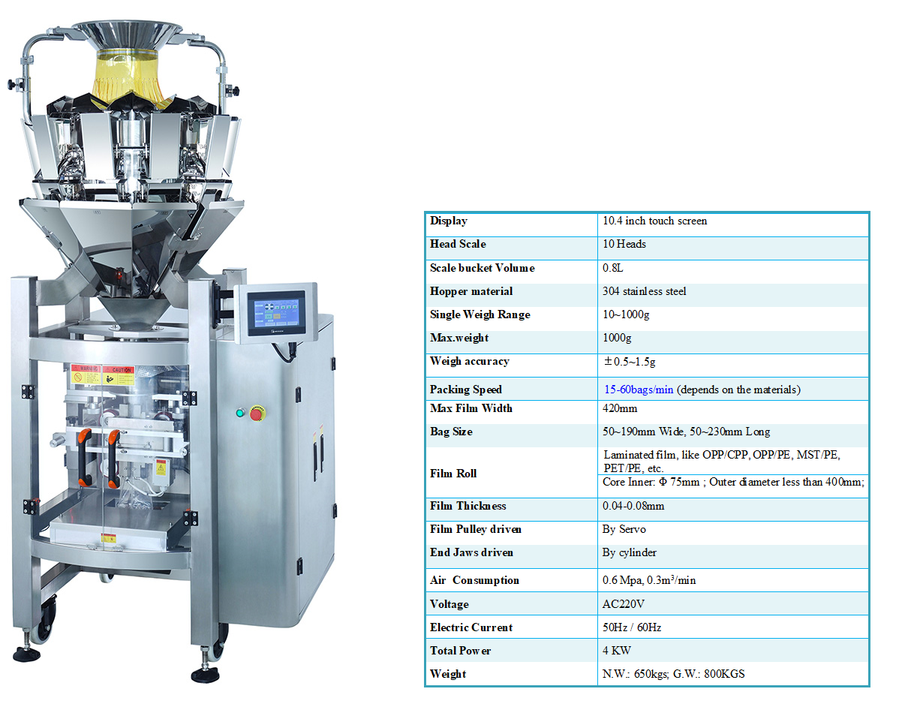

Specifications:​

​The UN-420C vertical packaging machine is a high performance that offers state-of-the-art features with speeds from 15-60 bags per minute depending on materials.


This vertical packaging machine is built to last and offers the following features.

  • ​PLC and touch screen operation interface with languages choose.
  • Simple and fast bag size changeover with one-piece forming sets
  • Exact alerting to prevent product to be jammed between the jaws.
  • Photocell Sensor tracking the printed eye-mark.
  • Data printer (hot stamp) is automatically set.
  • Stainless steel as standard version for excellent durability and sanitation.​​​

 vertical packaging MACHINE
