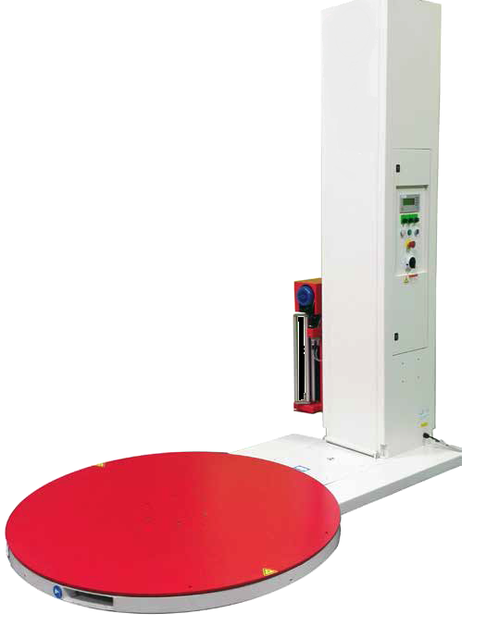

Stretch Wrap Machine

Specifications:

Power Supply 110VAC/60Hz
Turntable Speed* 0 ~ 12 RPM
Turntable Diameter 59”
Turntable Height 3-1/8”
Mast Height 95”
Max. Package Height 87”
Max. Package Weight 5,000 lbs
Film Carriage** 20”
Machine Dim. (L × W × H) 96.5” x 59” x 99”
Machine Weight (Gross) 1,295 lbs

The UN-2020 Semi auto Stretch Machine features a powered pre-stretch unit to maximize film efficiency. Using an electronic photo eye, the UN-2020 automatically recognizes load height and adjusts carriage travel to create an effective wrap cycle.

The turntable offers a soft start and soft stop feature to ensure gentle handling of the load being wrapped and resets itself automatically upon completion of each load.

Features:

Semi-Automatic or Manual Operation
PLC (Programmable Logic Controller)
LCD Display with Integrated Controls
Automatic Load-Height Sensor (ALHS)
Powered Pre-Stretch (250%)
Soft Start/Stop Turntable
Turntable Resets Automatically to Home Position

To find out more about this or any other new or used machine you might be looking for, feel free to call or email us and someone at U-Packaging will be happy to help you.
