Inkjet Packaging Printing Machine

Standard/Optional Hardware and Software Features for UNI-PRINT 100 & 200

Color Touch Screen Controller
Print head Module with internal product sensor
Mounting brackets for side coding applications
Alpha/Numeric Character Set with special characters
Ability to control up to 32 print heads via RS 485
Mixed Raster Printing N/A
Character Heights: 1/2” in one line, 7/32” in two lines
Character Heights: 1/2”, in one line, 7/32” in two lines, 1/8” in three lines, 3/32” in four lines N/A
Alternative font styles and character heights
24/48 Character message length per line of text
Programmable line speed, Print direction and Print delay
Inter-character spacing, Inverted print
Variable Time and Date formats, Sequential numbering, Shift coding, Date offset,
Automatic message repeat, Password protection
Multiple language prompts: English, Spanish, French and German
Message Storage: Up to 200 messages in Controller, each message can have its own unique name.
Back up stored messages on Data Flash Card
Automated message recall with optional USB Bar Code Scanner
Software for PC control

Software Options

Alternate font heights and font styles
Logos: Ability to load up to 3 logos in a message
Message storage, extended message length, date and time formats, sequence numbering and more

Hardware Options

Add-on print head modules, Spring loaded carton follower, Top coding bracket, External sensor, External encoder, External Low Ink Beacon

Networking Capabilities

The Touch Screen Controller has the capability of controlling up to 32 individual print head modules through via a RS 485 data link. Complete PC control of the UNI-PRINT network through our UNI-PRINT software is available as an option.

INKJET packaging PRINTING MACHINE

Two UNI-PRINT Versions Available

UNI-PRINT 100 starts off as a basic system that will print either one line of 1/2” high characters or two lines of 7/32” characters. No additional software is included as standard. There are a number of software options for the 100 series that add memory, extended message length, sequence numbering, time and date formats, and more.

UNI-PRINT 200 is a fully loaded system which includes all of the optional 100 series software as standard. The 200 series can print one line of 1/2”, two lines of 7/32”, three lines of 1/8” or four lines of 3/32”. Eight of the more popular barcode symbiology’s are built in to the 200 series. These barcodes include: I 2 of 5, Code 39, UPC-A, UPC-E, 128 B, 128 C, EAN 8 and EAN 13. Data Matrix is available as an option. Optional fonts sizes & styles are available for both models.

Add-On Print Heads
Adding another print head is as simple as sliding it on. Each print head module is manufactured with a dovetail slot on one side and a dovetail slide on the other. You can attach up to three additional print heads on a single bracket by inserting the slide on one into the slot on the other. A small RS 485 data cable is then used to connect the modules. This allows the touch screen controller to network all of the print heads on the production line.

Specifications:

Production Speed
Up to 200 feet (61m) per minute @ 300dpi

Ink Supply
Cartridge volume: 42ml
Porous Colors: Black, Blue, Red, Green, Yellow, UV Visible
Semi-Porous Colors: Black, Blue, Red
Non-Porous Colors: Black
Low ink monitoring

Power Required
10-240 VAC, 50-60Hz 0.5A

Environmental
50F - 104F (10C - 40C)
Up to 80% RH non-condensing

Physical Dimensions
Controller: 4.500” wide x 3.000” long x 1.000” deep
Print head module: 2” wide x 4” deep x 3” high

To find out more about this or any other new or used machine you might be looking for, feel free to call or email us and someone at U-Packaging will be happy to help you.

Additional Features:

Breakaway Print Head Protection:
Cartons traveling on a typical powered conveyor or going through a case taper can sometimes come through skewed or off center. The horizontal adjusting rod that holds the print head module has been designed with a breakaway feature that moves the print head out of harm’s way should the carton come in contact with it. A detent in the assembly allows you to securely snap the print head module back into position after the misaligned carton has passed.

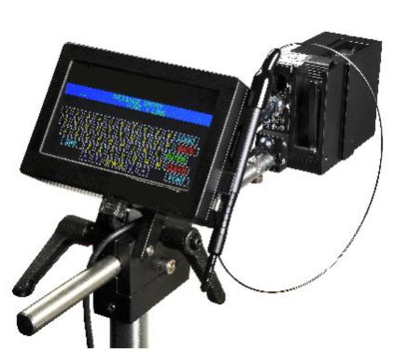

Color Touch Screen Controller:
The Touch Screen Controller utilizes a large 4.3” (diagonal) color display which guides you through message entry in a very user friendly manner. A stylus is included and snaps back into place on the controller when not in use.

The UNI-PRINT Inkjet Packaging Printing Machine has been designed to offer exceptional performance, virtually no maintenance and an extremely low Total Cost of Ownership in a compact, easy to use system.

Our printer is complete and ready to install right out of the box. The system includes the mounting brackets, a color touch screen controller for message entry, a print head module with internal product sensor and power supply.

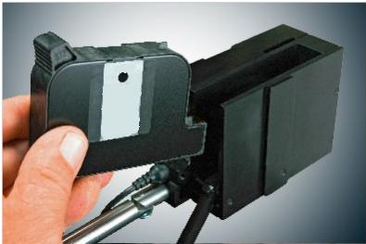

The UNI-PRINT delivers bold, highly legible and fully formed characters in a print resolution of 300 dpi at production line speed of up to 200 feet per minute. Built into the print head is an internal ink reservoir. Once the ink in the cartridge is depleted, it can be taken out, disposed of and a new ink cartridge.
